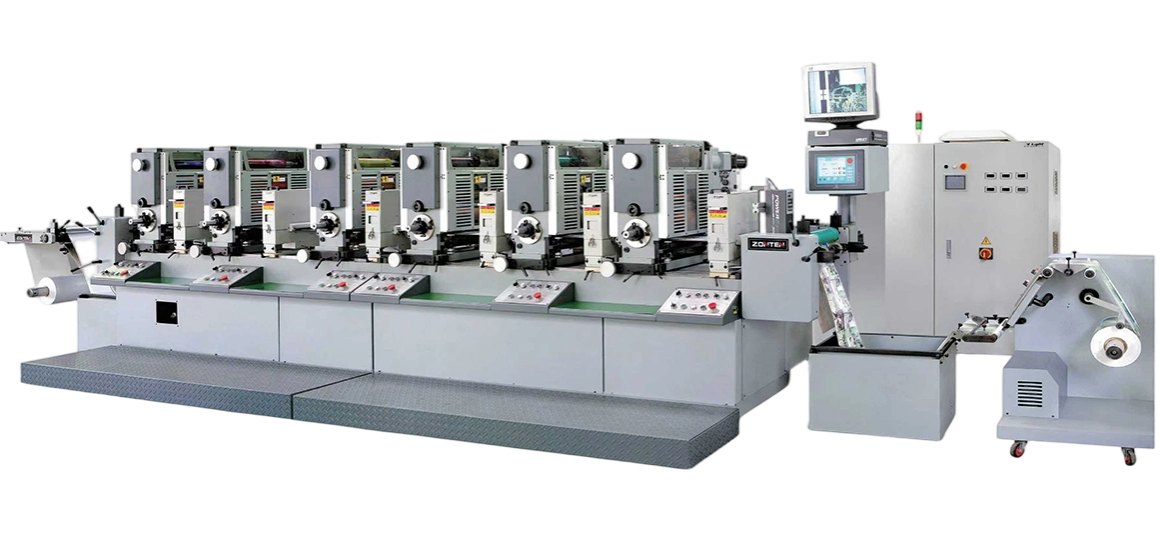

SUPER-320 Intermittent Label Relief Printing Machine
HomeProducts > Presses
Product Introduction
Print this page Send email Product Inquiry

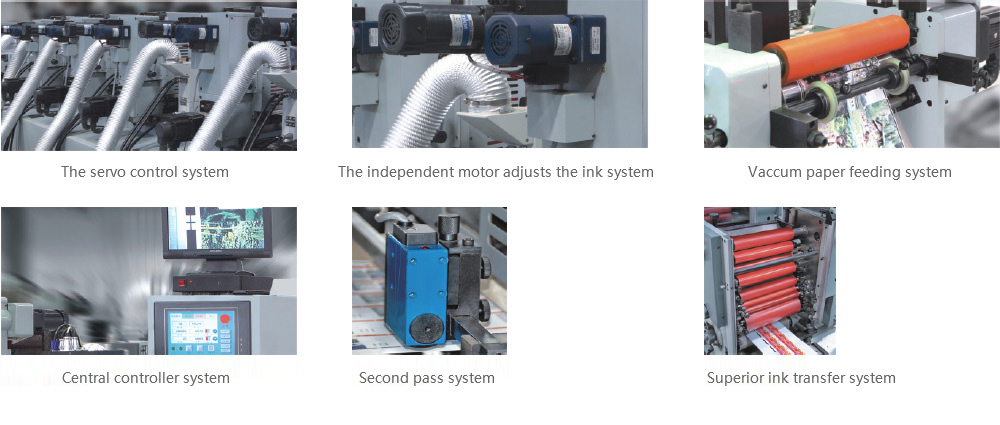

Performance and Characteristics

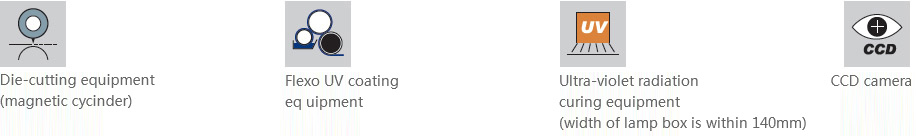

Optionals



 Technical Specification

Model

SUPER-320

Max. Web Width

310mm

Max. Printing Width

290mm

Printing Repeat

50~260mm

Color

2~8 color

Thickness of Substrate

0.1~0.3mm

Machine Speed

30-250r/min

Max. Unwind Diameter

700mm

Max. Rewind Diameter

700mm

Total Capacity

17.3KW Not Including UV

Power

380V/AC.Three-phase 50/60H 50A17.3KVA

Overall Dimension(LxWxH)

6800x1600x1400mm

Machine Weight

6800kg/6 color

Notes: With the viriation of the length to be printed, machine speed should be changed.

*lts overall dimension and manufacturing Process are subject to change without further notice.

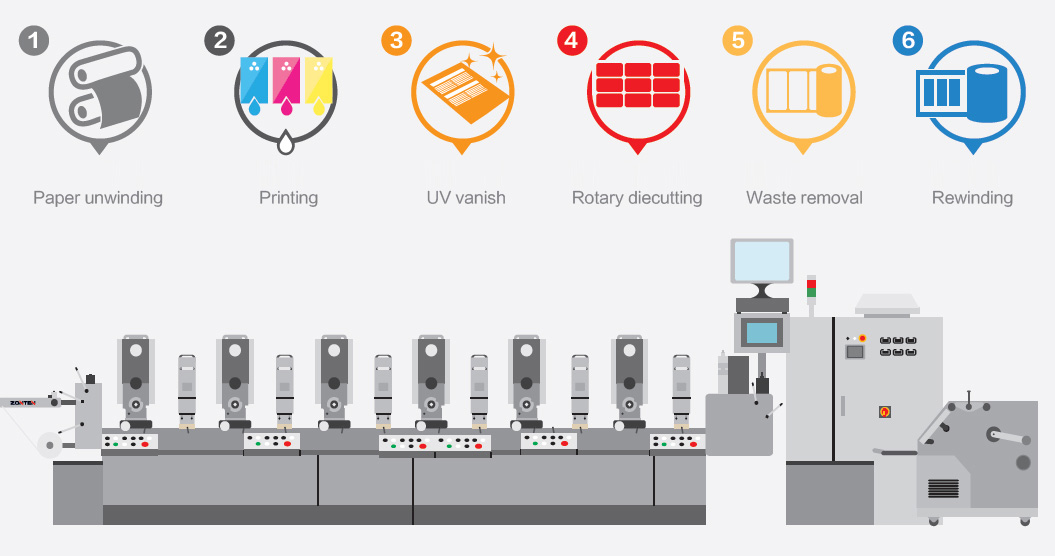

One Time to Complete All The Processes
