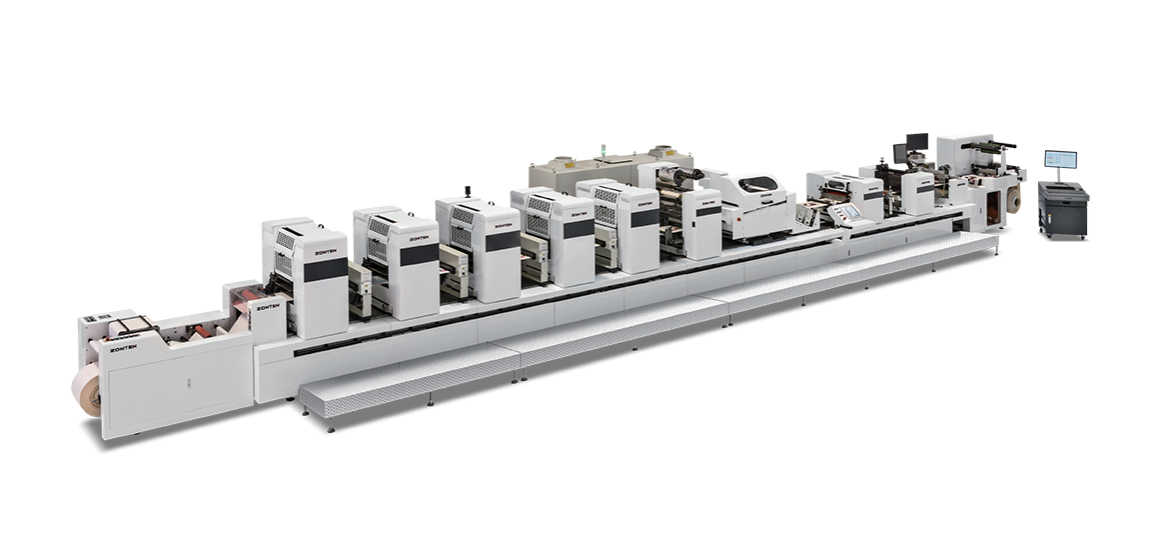

• ZTJ-330/520 Intermittent Offset Label Presses
ZTJ-330/520 Intermittent Offset Label Presses
HomeProducts > Presses
Product Introduction
Print this page Send email Product Inquiry


 1、Servo Driven

  Independent servo driven system in each unit to guarantee stable register at high printing speed.


  2、Printing Unit

  Use the most advanced inking system which has 23 inking rolls, four large diameter form rolls included and

  alcohol  damping system to guarantee printing quality.


  3、Pre-register system

  Based upon the printing length, input log data into the sliding console, each unit will automatically be adjusted to

  its ready position.


  4、Register System

  Each printing unit can remote adjust register which includes lineal, lateral and skewing without stopping the press

  to save time and reduce the waste of substrate.


  5、Vacuum Backflow Control Unwind

  Vacuum backflow cylinder can prevent scratches on the back of label paper during intermittent motion.


  6、No Joystick

  Fully automatic operation system including pressure adjustment, inking roll washup.roller clutch, etc.


  7、Easy to Operate

  Equipped with sliding touch screen console which can be moving around to increase the efficiency of operator.


  8、Printing Size

  Technology to minimize printing size to achieve larger scale of variable size printing.


  9、British Control System

  Apply electronic component from famous international brand to guarantee long term reliable operation.


  10、Lubrication System

  Centralized automatic lubrication.


  11、Adopt Latest German Technology of Offset Press

  Reasonable structure, low noise and energy consumption.




Technical Specification

Model

ZTJ-330

ZTJ-520

Max. Web Width

330mm

520mm

Max. Printing Width

320mm

510mm

Printing Repeat

100~350mm

150~380mm

Thickness of Substrate

0.1~0.3mm

0.1~0.35mm

Machine Speed

50-180rpm(50M/min)

50~160rpm

Max. Unwind Diameter

700mm

1000mm

Max. Rewind Diameter

700mm

1000mm

Pneumatic Requirement

7kg/cm²

10kg/cm²

Total Capacrty

30kw/6 colors(Not including UV)

60kw/6 colors(Not including UV)

UV Capacity

4.8kw/color

7kw/color

Power

3 Phases 380V

3 Phases 380V

Overall Dimension(LxWx H)

9500 x1700x1600mm

11880x2110x1600mm

Machine Weight

about 13 ton/6 colors

about 15 ton/6 Colors

Notes: With the viriation of the length to be printed, machine speed should be changed.

*lts overall dimension and manufacturing Process are subject to change without further notice.

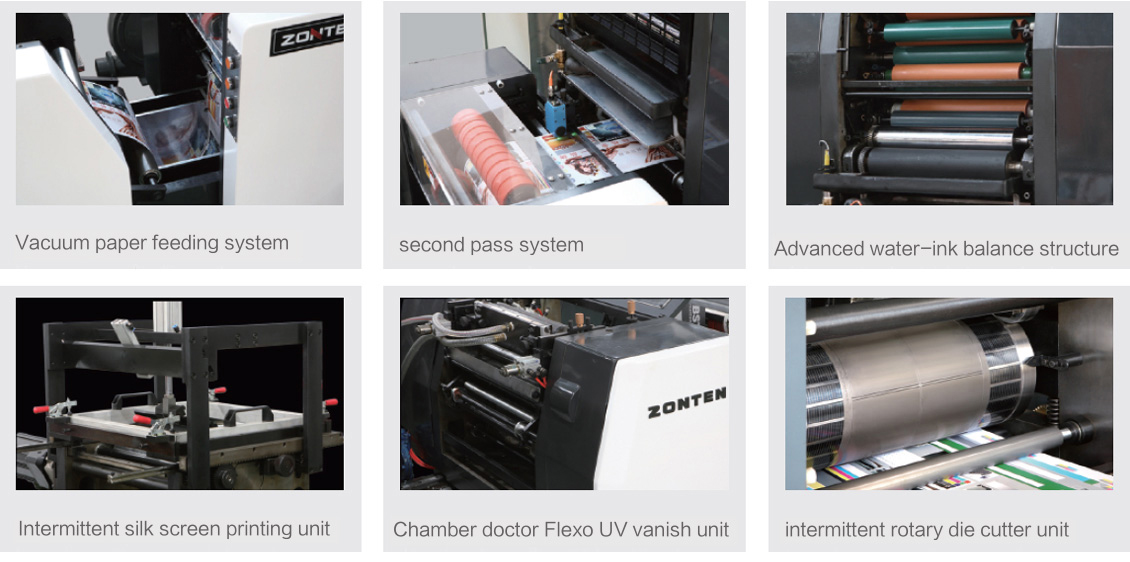

Optionals
